8 Channel IPTV Encoder: Building an Eight-Source Headend
Quick answer: An 8 channel IPTV encoder is built to ingest eight separate live video sources and publish them as IP streams. It is a headend tool for venues and organizations with several authorized feeds. It is not an eight-screen viewer box, and an eight-rendition encoder with one input is a different product.
Design the input map first
List each source, connector, resolution, frame rate, embedded audio format, and intended channel name. Decide whether all eight must stay live continuously or whether some can be switched. If feeds arrive over both HDMI and SDI, check whether the chosen chassis supports a mixed input configuration. Plan spare capacity before filling every port.
Network and operations matter
At eight sources, a small per-channel bitrate mistake becomes a large total. Calculate simultaneous output bitrates, including any second rendition for mobile viewers. Verify switch capacity, uplink, multicast configuration if used, and how streams are monitored. Ask whether the system offers independent restart, logs, remote management, and power redundancy.
Use model sheets, not labels alone

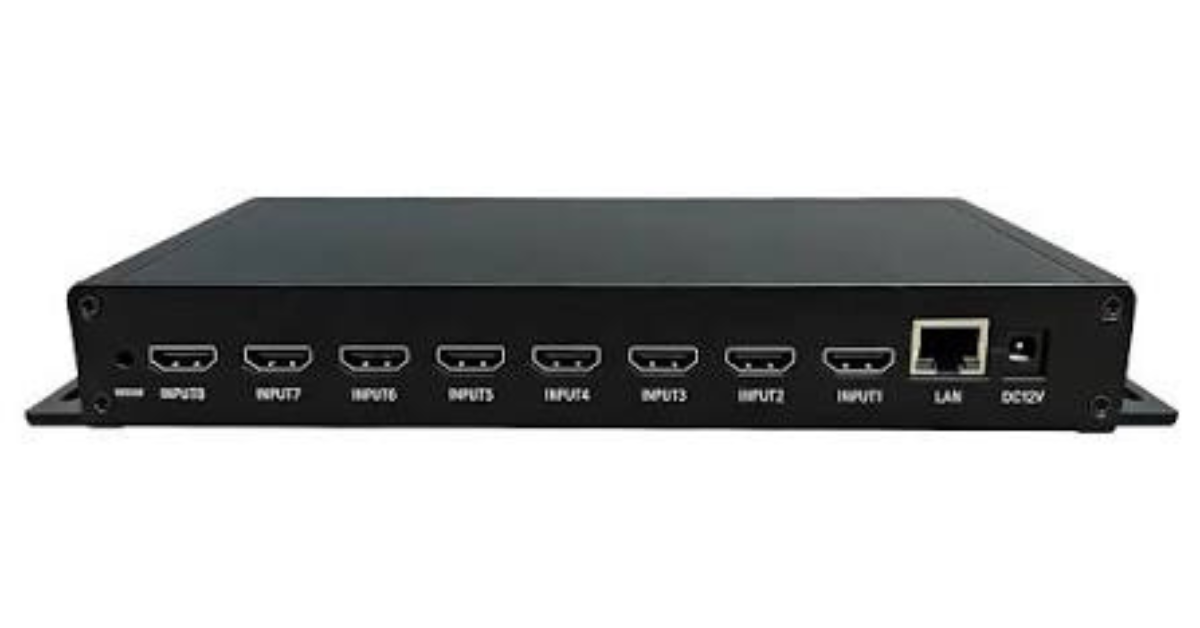

The PVI VeCODER ULTRA-8 specification describes eight HDMI inputs and several IP output formats. That is one example, not a universal eight-channel specification. Confirm the current model revision, firmware, and support conditions with the manufacturer before purchasing.
Questions to ask before ordering
- Does the input match every planned source?
- Will the receiving platform accept the codec and protocol?
- Can the network sustain all simultaneous streams?
- Have you tested playback on the actual devices?
Frequently asked questions
Can one eight-channel encoder serve eight different TVs?
It can create eight source streams. What each TV can play depends on the delivery system, network, and app or decoder.
Is one chassis always better than eight single-channel boxes?
No. A chassis simplifies centralized management, while separate boxes can offer different failure isolation. Compare the full operational cost.
For the basic encoder-versus-player distinction, read our IPTV encoder box guide. If you simply need to watch IPTV, see compatible devices and subscription plans.
Further reading: PVI’s encoder family overview.
